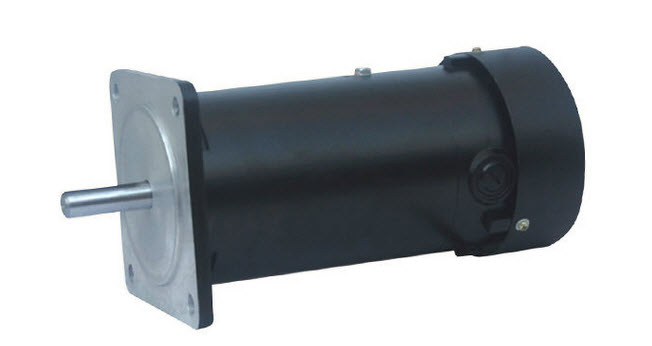

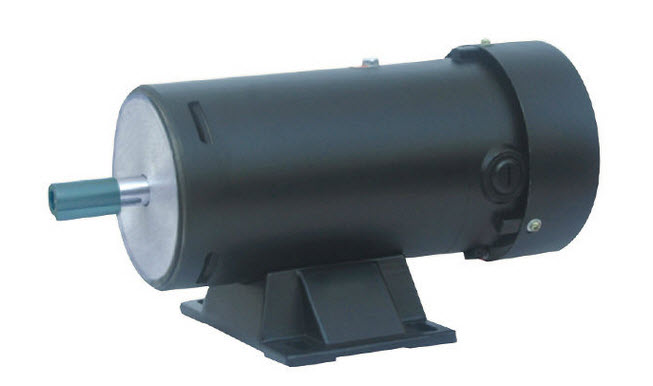

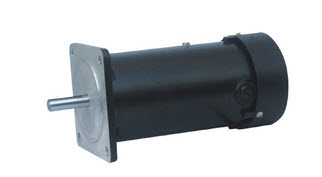

High performance Electric DC motor 220v











Quick Details

  • Usage: Boat, Car, Electric Bicycle, Fan, Home Appliance, Boat,Car,Electric Bicycle,Fan,Home Appliance
  • Certification: UL
  • Type: DC motor 220v
  • Torque: 0.75Nm
  • Construction: Permanent Magnet
  • Commutation: Brush
  • Protect Feature: Totally Enclosed
  • Speed(RPM): 1900rpm
  • Continuous Current(A): 0.91A
  • Output Power: 150W
  • Voltage(V): 220V
  • Efficiency: IE 2
  • g.w: 7kg electric DC motor 220v
  • carton size: 31*19*20.5cm DC motor

Specifications

1.DC motor 220v
2.UL,CE
3.220v,150w,1900rpm,dia:113mm
4.Widely used
5.High efficiency, easy adjust speed

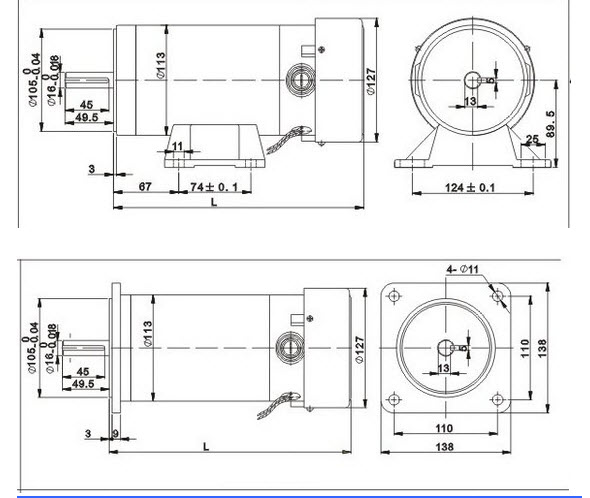

◊ Drawing

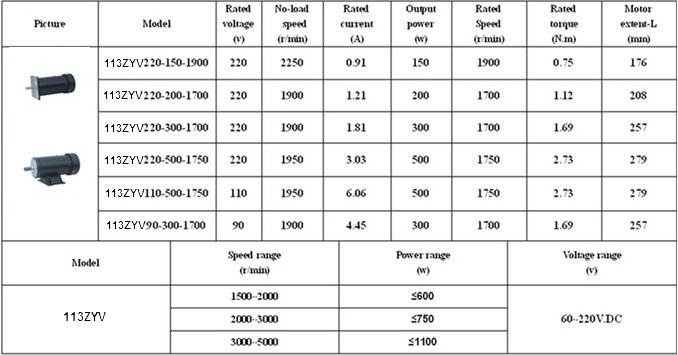

◊ Specification

◊ Model Description

113

ZYV

220

-

150

-

1900

1.

2.

3.



4.



5.


1.Body OD:113-fuselage outside diameter of 113mm

2.ZYV:ferrite permanent magnet DC motor

3.Voltage:220-220.DC input

4.Power:150-rated output power of 150HP

5.Speed:1900-Rated speed 1900rpm
